DTS10

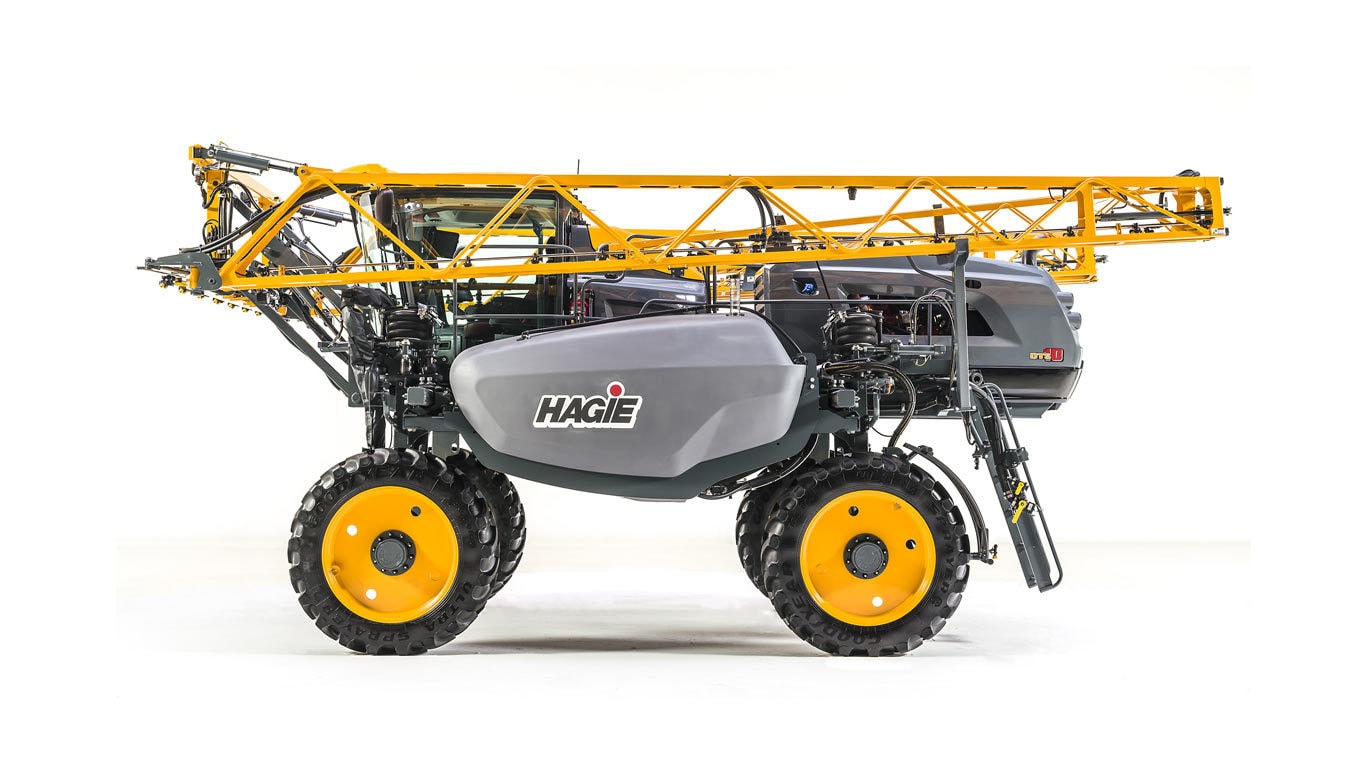

Self-Propelled Sprayer

  • Hagie Dual Tank System (DTS) with decades of proven
    application performance
  • Two-solution tanks mounted low between axles
  • Lighter weight (20,000 lbs.) allows early field access
  • Low center of gravity, balanced front-to-back, side-to-side
  • John Deere Precision Ag Technologies

Build Your Own

Features

6.7-L (408.9-cu in.) Cummins® QSB engine
Final Tier 4 (FT4) diesel engine Final Tier 4 (FT4) diesel engine

The Hagie DTS10 is powered by a 6.7-L (408.9-cu in.) Cummins QSB diesel engine providing 165-kW (225-hp) using an emissions-compliant Final Tier 4 (FT4) configuration. This 6.7-L (408.9-cu in.) engine is electronic with an air-to-air cooler and turbocharger.



The FT4 engine requires ultra-low sulfur diesel (ULSD).

Engine location
Engine location Engine location

The rear-mounted engine keeps constant weight to offset the spray boom and leaves space in the center of machine for the varying weight of fuel and rinse tanks. This allows for better coolant airflow and reduction of cab noise.

Engine exhaust
Engine exhaust stack Engine exhaust stack

The engine exhaust is located at the rear of the machine. This helps to reduce interior cab and noise vibration.



Cummins is a trademark of Cummins, Inc. Hagie is a trademark of Hagie Manufacturing Company, LLC and similar to John Deere branded equipment, Deere will also support Hagie equipment.

Front console
Front console steering Front console steering
Front console telescope Front console telescope
Front console tilt Front console tilt
Front console foot controls Front console foot controls
Location (image) Component Description/notes
A Steering wheel Optional premium leather-wrapped steering wheel
B Hazard/warning lights switch ---
C  Highway/warning lights switch ---
D  Turn signal indicator Left-hand side
E  Highway running lights indicator ---
F High beams indicator ---
G Turn signal indicator Right-hand side
H Steering wheel telescope adjust handle Available only if equipped with this option
I Steering column tilt adjust button Knee angle
Available only if equipped with this option
J Steering column release pedal ---
K Operator foot pegs Two pegs
Available only if equipped with this option
L Deceleration (decel) pedal ---
M Horn ---
N Windshield washer ---
O Turn signal lever ---
P Windshield wiper speed ---
Q High beams (brights) ---



Side console
#
#
#
#
#
#
#
Location (image) Component Description/notes
A Emergency stop (e-stop) switch

The e-stop switch provides a quick method for stopping the engine in an emergency situation.

B Foam marker switch (if equipped) The foam marker switch controls foam application on both sides of the machine.
C  Rinse switch The rinse switch is used to rinse the solution tank and spray booms.
D  Boom solution valve switches

The boom solution valve switches each control a valve located on the boom or transom. The valves control the flow of the solution through the boom.

E  Fence row switch (left-hand side)

The fence row switches are used in the selection of either the right or left fence row spray nozzle.

F Rate control switches The rate control switches control the rate in which solution is applied through the spray booms by either the rate controller (enable) or operator-controlled spray rate (manual).
G Rear nozzle switch

The rear nozzle switch controls the two rear nozzles (located behind the rear tires).

H Pump speed and rate switches

The pump speed/rate switches allow the operator to increase or decrease flow rate through the spray system.

I Fence row switch (right-hand side) ---
J Main tank valve switch (left-hand side)

The main tank valve switch controls the solution tank valve. This switch must be in the on (open) position for spray application.

K Solution pump switch The solution pump switch is used to turn the solution pump on or off.
L Agitation valve switch The agitation valve switch controls the rate of flow through the agitation system.
M Main tank valve switch (right-hand side  ---
N Boom extension switches (left/right outer fold) The boom extension switches are used to extend or retract the outer boom extensions.
O Traction valve switch  ---
P Ignition switch ---
Q Power mirror switch (if equipped) The power mirror switch allows vertical or horizontal adjustment of the electric side-view mirrors by pressing the switch in the desired position.
R Hydrostatic drive control handle The hydrostatic drive control handle controls the direction of the machine and the speed in which it travels. It is also used to control the spray booms, master spray, end row management, and shift up/down speeds.
S Transom switch (up/down) The transom switch is used to raise and lower the main lift.
T Right-hand boom switch The left- and right-hand boom switches are used to raise, lower, extend, and retract the spray booms.
U Left-hand boom switch The left- and right-hand boom switches are used to raise, lower, extend, and retract the spray booms.
V Master spray switch The master spray switch activates the boom solution valves.
W End row management switch The end-row management switch is a programmable switch that enables various functions (i.e. all-wheel steer, auto steer, master spray, and NORAC® enable) when the switch is depressed. End-row management settings are programmed through the machine display.
X Shift up switch The shift up/down switches are used for speed range selection.
Y Shift down switch The shift up/down switches are used for speed range selection.
Z Parking brake switch The parking brake switch is used to engage and disengage the parking brake, as well as extend and retract the ladder.
AA Throttle switch The throttle switch is used to control engine speed (rpm).
BB Remote stereo controls The remote stereo controls are conveniently located to control the stereo (volume, mute, source, and seek).
CC 12-V power ports Four power ports are provided for the connection of additional items (such as radios and computer equipment).
DD Two auxiliary audio input connections The auxiliary audio input allows connection of a personal iPod® device or MP3 player.



Overhead monitors and controls
#
#
#
#
#
#
Location (image) Component Description/notes
A Courtesy/interior work light

The courtesy light comes on automatically when the cab door is opened. The interior work light is activated by manually pressing the interior work light switch (located on the light housing).

B Stereo (if equipped)

The stereo features with an AM/FM tuner, weatherband broadcasting, CD player, MP3 player, USB/iPod controls, and Bluetooth® wireless system (if equipped).

C  Climate controls

The climate controls allow the operator to set and maintain desired cab temperature. Vents are placed throughout the cab to keep air circulating and to maintain clear windows throughout the cab.

D  NORAC monitor (if equipped)

The NORAC monitor controls the automatic boom leveling system.

E  Spray system console

The spray system is controlled by the spray system console and the solution pump control valve. The system receives data and automatically makes adjustments based on the target rate of application set by the operator.

F Machine display

The machine display is the central control center of the machine. It controls many of the machine’s electronically driven functions (i.e. machine drive, AWS, attachment operation, tread adjustment, spray systems, lights, diagnostics, etc.).

G Machine gauges

The machine gauge panel on the A-post is conveniently located for viewing engine rpm, fuel level, engine coolant temperature, and engine aftertreatment level (if equipped).

NORAC is a trademark of NORAC Systems International, Inc. iPod is a trademark of Apple, Inc. Bluetooth is a trademark of Bluetooth SIG, Inc.

Solution tank
Solution tank Solution tank
Solution tank drain grade Solution tank drain grade

Two 1892-L (500-gal.) polyethylene tanks are mounted on tank cradles on each side of the machine. The solution tank design allows the sump to drain on a 30 percent grade and is equipped with a spinball rinse system. A mechanical sight gauge is located on top of each solution tank to visually check the solution level at all times.

Solution pump
Solution pump Solution pump

The Hypro® 9306C-HM1C solution pump (located beneath the center of the machine) is a centrifugal-type hydraulically driven pump that is controlled by the solution pump control valve and the spray system console. It comes with silicon-carbide seals.

The solution pump draws solution out of the tank at the rate determined during calibration. It dispenses solution through the many valves and hoses that make up the spray system and also dispenses fluids through the agitation and rinse systems.

Solution pump switch
Solution pump switch Solution pump switch
Solution pump indicator Solution pump indicator

The solution pump switch is located on the side console and is used to turn the solution pump on and off.

NOTE: When the solution pump is on, a solution pump indicator (located on the machine display home page - field mode) will illuminate.



Hypro is a trademark of Pentair Flow Technologies, LLC.

Wet boom Wet boom

The spray booms are controlled by an electrohydraulic system. This system consists of operator-manipulated switches (located on the side console and the hydrostatic drive control handle) and hydraulic cylinders (attached to the booms), which provide lift, level, and horizontal extension.

Hydraulically folding the extensions of an 18.3- or 24.4-m (60- or 80-ft) or 18.3- or 27.4-m (60- or 90-ft) spray boom and shutting off the outer sections essentially turns it into an 18.3-m (60-ft) spray boom. The wet boom connections feature with ARAG® EasyFit fittings with an o-ring seal and are 13-mm (0.5-in.) schedule 5 pipe-fed from one end with a 25-mm (1-in.) hose.



Boom connections Boom connections

Boom configurations

Sprayer
model
Boom
location
Minimum boom
width
Maximum boom
width
Number of
boom sections
Wet boom nozzle
spacing
DTS10 Front 18.3 or 24.4 m
(60 or 80 ft)
18.3 or 27.4 m
(60 or 90 ft)
Seven Standard - 38 cm (15 in.)
Optional - 51 cm (20 in.)

ARAG is a trademark of ARAG S.r.l.

Chassis mainframe Chassis mainframe
Horizontal cross-through axle tube Horizontal cross-through axle tube

The DTS10 Sprayer mainframe design features horizontal cross-through axle tubes, as well as boom and platform mounts on weldment.

  • 360.7-cm (142-in.) mainframe width
  • 182.9-cm (72-in.) ground clearance

Specifications

EnginePeak rated power
167 kW
225 hp
Solution system - CapacityTwo tanks - per tank - 1890 L
500 gal.
Rinse tank capacity208 L
55 gal.
Boom length options/Material18/24 and 18/27 m
60/80 and 60/90 ft
Spray speed range0.8 to 32 km/h
0.5 to 20 mph
Transport speed, maximum48 km/h
30 mph
SuspensionIndependent air-ride
Crop clearance with standard tires182 cm
72 in.

Peak rated power167 kW
225 hp
EmissionsFinal Tier 4 (FT4)
Number of cylindersSix
Displacement6.7 L
409 cu in.
Alternator200 amp
Fuel tank capacity378.5 L
100 gal.
Diesel exhaust fluid (DEF) tank capacity37.9 L
10 gal.

CapacityPer tank - 1890 L
500 gal.
Tank materialPoly
Rinse tank capacity208 L
55 gal.
Quick fill sizeQuick-fill connection - 5.1 cm
2 in.
Rate control makeJohn Deere
Raven / Ag Leader optional
Automatic section controlOptional
Solution system controlJohn Deere
Raven/Ag Leader - optional
Fill locationRear
Chemical eductorOptional
Chemical eductor capacity (size)30.3 L
8 gal.
Flow meter size5.8 cm
2 in.
Pressure strainer50 mesh
Boom strainerOptional 80 mesh

Boom length options18/24 and 18/27 m
60/80 and 60/90 ft
Automatic boom heightNORAC
Plumbing materialStainless steel
Ground height adjustment58 to 257 cm
23 to 101 in.
Breakaway widthFor 27-m (90-ft) booms - 3 m
10 ft
Boom sectionsSeven sections for boom widths - 18/24 and 18/27 m
60/80 and 60/90 ft

TypeHydrostatic
DriveFull-time four-wheel drive (4WD)
ShiftingDual range speed control with incremental speed adjustment within each range
Hydraulic reservoir capacity95 L
25 gal.
Spray speed range0.8 to 32 km/h
0.5 to 20 mph
Transport speed, maximum48 km/h
30 mph

Dry compatibleNo
SuspensionIndependent air-ride
Crop clearance with standard tires182 cm
72 in.
Front tires380/80R38 or 320/80R42
Rear tires380/80R38 or 320/80R42
Flotation tires540/65R30
Hydraulic tread adjustOptional
Wheel tread spacing305 to 406 cm
120 to 160 in.
Wheel base353 cm
139 in.
Turning radius5.9 m
19.4 ft
Parking brakeIntegrated in final drives
Primary brakesDrive system dynamic braking
Ladder raise/lowerHydraulic
Total weight with 80-ft boom9,162 kg
20,200 lb
Total weight with 90-ft boom9,307 kg
20,520 lb

Air compressorOnboard air
Foam marker capacity11.35 L
3 gal.
