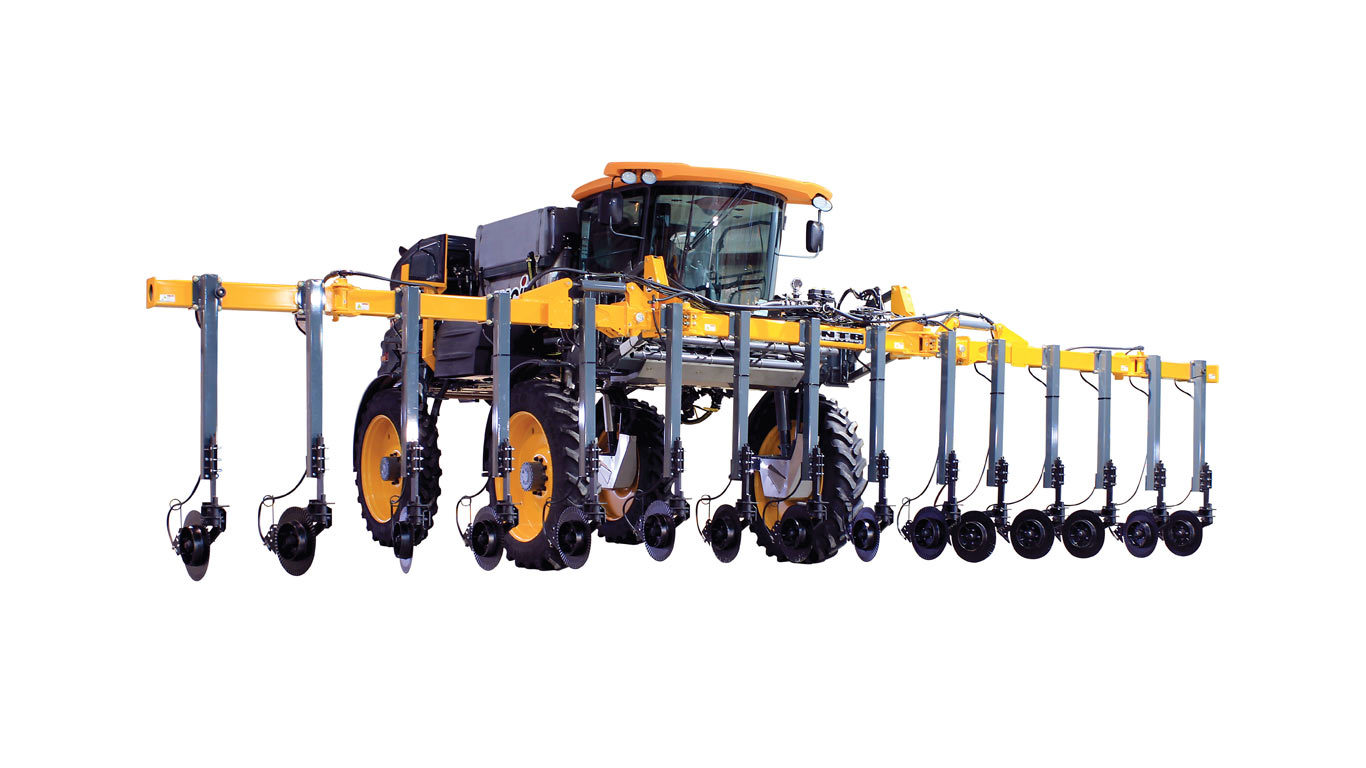

STS10

Self-Propelled Sprayer

  • Full-season versatility in one machine
  • Reduce turn radius and crop damage with all-wheel steer
  • Perform late-season applications with Tall Crop Package
  • Avoid crop damage and stay on track with AutoTrac™ Vision & RowSense
  • Use information with John Deere Integrated Technologies

Build Your Own

Features

John Deere PowerTech™ PSS 6.8-L (415-cu in.) engine
PowerTech™ PSS 6.8L (415-cu in.) engine PowerTech™ PSS 6.8L (415-cu in.) engine

Beginning with model year 2019, the Hagie STS10 and STS12 Sprayers utilize the John Deere PowerTech 6.8L (415-cu in.) diesel engine. This engine offers 208.8 kW (280 hp) with a peak power of 223.7 kW (300 hp) in the STS10 and 223.7 kW (300 hp) in the STS12. The reliable performance of these engines couples well with the drive system on the STS Sprayers to provide the operator excellent power on demand.

Engine location
Rear-mounted engine Rear-mounted engine

The rear-mounted engine keeps constant weight to offset the spray boom and leaves space in the center of machine for the varying weight of fuel and rinse tanks. This allows for better coolant airflow and reduction of cab noise.



Hagie is a trademark of Hagie Manufacturing Company, LLC and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

The solution system is a constantly monitored, continuously adjusted, computer-controlled system. The cab-mounted digital spray system console receives information from various inputs to help determine L/ha (gpa) and L/min (gpm).

Solution tank
Solution tank Solution tank
Sprayer model Tank capacity Tank type
STS10 3785 L (1000 gal.) Stainless-steel tank
STS12 4542 L (1200 gal.) Stainless-steel tank
STS14 5299 L (1400 gal.) Stainless-steel tank
STS16 6056 L (1600 gal.) Stainless-steel tank



Solution pump
Solution pump Solution pump

The Hypro® 9306C-HM1C-BU solution pump (located beneath center of machine) is a centrifugal-type, hydraulically-driven pump that is controlled by the solution pump control valve and the spray system console. It comes with silicon-carbide seals, 7.6-cm (3-in.) inlet plumbing and 5.1-cm (2-in.) outlet plumbing.



The solution pump draws solution out of the tank at the rate determined during calibration. It dispenses solution through the many valves and hoses that make up the spray system and also dispenses fluids through the agitation and rinse systems.

Solution pump switch
Solution pump switch Solution pump switch
Machine control display - Home Machine control display - Home

The solution pump switch is located on the side console and is used to turn the solution pump on and off.

NOTE: When the solution pump is on, a solution pump indicator (located on the machine display home page - field mode) will be illuminated.



Hypro is a trademark of Pentair Flow Technologies, LLC.

STS Series Sprayer booms STS Series Sprayer booms

The spray booms are controlled by an electrohydraulic system. This system consists of operator-manipulated switches (located on the side console and the hydrostatic drive control handle) and hydraulic cylinders (attached to the booms), which provide lift, level, and horizontal extension. Hybrid booms are available in widths of 27.4 m, 30.5 m, 36.6 m, and 40.2 m (90 ft, 100 ft, 120 ft, and 132 ft).

The spray booms are offered in a variety of configurations depending on the model and the producer's application needs.



27.4-m (90-ft) boom with 38.1-cm (15-in.) row spacing
#

Numerical values key:

  1. Section one
  2. Section two
  3. Section three
  4. Section four
  5. Section five
  6. Section six
  7. Section seven

Alphabetical values key:

  1. 18.3-m (60-ft) 24-row planter
  2. 9.1-m (30-ft) 12-row planter
  3. 9.1-m (30-ft) 12-row planter
  4. 9.1-m (30-ft) 12-row planter
30.5-m (100-ft) boom with 38.1-cm (15-in.) row spacing
#

Numerical values key:

  1. Section one
  2. Section two
  3. Section three
  4. Section four
  5. Section five
  6. Section six
  7. Section seven
  8. Section eight
  9. Section nine

Alphabetical values key:

  1. 18.3-m (60-ft) 24-row planter
  2. 3.05 m (10 ft)
  3. 9.1-m (30-ft) 12-row planter
  4. 9.1-m (30-ft) 12-row planter
  5. 9.1-m (30-ft) 12-row planter
  6. 3.05 m (10 ft)
36.6-m (120-ft) boom with 38.1-cm (15-in.) row spacing
#

Numerical values key:

  1. Section one
  2. Section two
  3. Section three
  4. Section four
  5. Section five
  6. Section six
  7. Section seven
  8. Section eight
  9. Section nine

Alphabetical values key:

  1. 9.1 m (30 ft)
  2. 18.3-m (60-ft) 24-row planter
  3. 9.1 m (30 ft)
  4. 9.1-m (30-ft) 16-row planter
  5. 9.1-m (30-ft) 16-row planter
  6. 9.1-m (30-ft) 16-row planter
  7. 4.6 m (15 ft)
  8. 9.1-m (30-ft) 12-row planter
  9. 9.1-m (30-ft) 12-row planter
  10. 9.1-m (30-ft) 12-row planter
  11. 4.6 m (15 ft)
Boom configurations
Hybrid boom width Boom
location
Number of sections Wet boom nozzle
spacing
27.4 m (90 ft) Front

Seven

38 or 51 cm
(15 or 20 in.)
30.5 m (100 ft) Front

Nine

38 or 51 cm
(15 or 20 in.)
36.6 m (120 ft) Front

Nine

38 or 51 cm
(15 or 20 in.)
40.2 m (132 ft) Front

Nine

38, 51, or 56  cm
(15, 20, or 22 in.)

Materials used in boom construction:

  • 27.4-m, 30.5-m, 36.6-m, and 40.2-m (90-ft, 100-ft, 120-ft, and 132-ft) booms – steel/aluminum hybrid

Chassis mainframe Chassis mainframe
Horizontal cross-through axle tube Horizontal cross-through axle tube

The STS Series mainframe design features horizontal cross-through axle tubes, as well as boom and platform mounts on weldment.

  • 144.8-cm (57-in.) mainframe width (from outside of each mainframe tube)
  • 301-cm (118.5-in.) mainframe width (from outside of each boom cradle weldment)
  • 183-cm (72-in.) ground clearance

Specifications

EnginePeak rated power
208 kW
280 hp
Solution system - Capacity3700 L
1000 gal.
Rinse tank capacity380 L
100 gal.
Boom length options/Material18/24/27, 18/30, or 36/40 m
60/80/90, 60/100, or 120/132 ft
Spray speed range0.8 to 32 km/h
0.5 to 20 mph
Transport speed, maximum56 km/h
35 mph
SuspensionIndependent air-ride
Crop clearance with standard tires183 cm
72 in.
Total weight with widest boom12,147 kg
26,780 lb

Peak rated power208 kW
280 hp
EmissionsFinal Tier 4 (FT4)
Number of cylindersSix
Displacement6.8 L
415 cu in.
Alternator200 amp
Fuel tank capacity510 L
135 gal.
Diesel exhaust fluid (DEF) tank capacity37.9 L
10 gal.

Capacity3700 L
1000 gal.
Tank materialPoly, stainless steel
Rinse tank capacity380 L
100 gal.
Quick fill size7.6 cm
3 in.
Automatic section controlOptional
Solution system controlJohn Deere
Fill locationFront standard
Side/rear optional
Chemical injection methodRaven Sidekick - optional
Chemical eductorOptional
Chemical eductor capacity (size)30.3 L
8 gal.
Flow meter size5.8 cm
2 in.
Pressure strainer50 mesh
Boom strainerStandard 80 mesh

Boom length options18/24/27, 18/30, or 36/40 m
60/80/90, 60/100, or 120/132 ft
Automatic boom heightNORAC
Plumbing materialStainless steel
Ground height adjustment46 to 264 cm
18 to 104 in.
Breakaway widthFor 27-m (90-ft) booms - 3 m
10 ft
For 30-m (100-ft) booms - 3.8 m
12.5 ft
For 36-m (120-ft) booms - 4.6 m
15 ft
Boom sections7 or 9 sections on booms - 27/36 m
90/120 ft

TypeHydrostatic
DriveFull-time four-wheel drive (4WD)
ShiftingInfinitely variable
Hydraulic reservoir capacity190 L
50 gal.
Spray speed range0.8 to 32 km/h
0.5 to 20 mph
Transport speed, maximum56 km/h
35 mph

Dry compatibleNo
SuspensionIndependent air-ride
Crop clearance with standard tires183 cm
72 in.
Front tires380/85R46, 320/90R50, or 320/105R54
Rear tires380/85R46, 320/90R50, or 320/105R54
Flotation tiresLSW 680/55R42
Hydraulic tread adjustOptional
Wheel tread spacing305 to 386 cm
120 to 152 in.
Wheel base356 cm
140 in.
Turning radius5.6 m
18.5 ft
Parking brakeIntegrated in final drives
Primary brakesDrive system dynamic braking
Ladder raise/lowerHydraulic
Total weight with 90-ft boom12,265 kg
27,040 lb
Total weight with 120-ft boom12,147 kg
26,780 lb

Air compressorOnboard air
Foam marker capacity11.35 L
3 gal.
