204SP

204SP

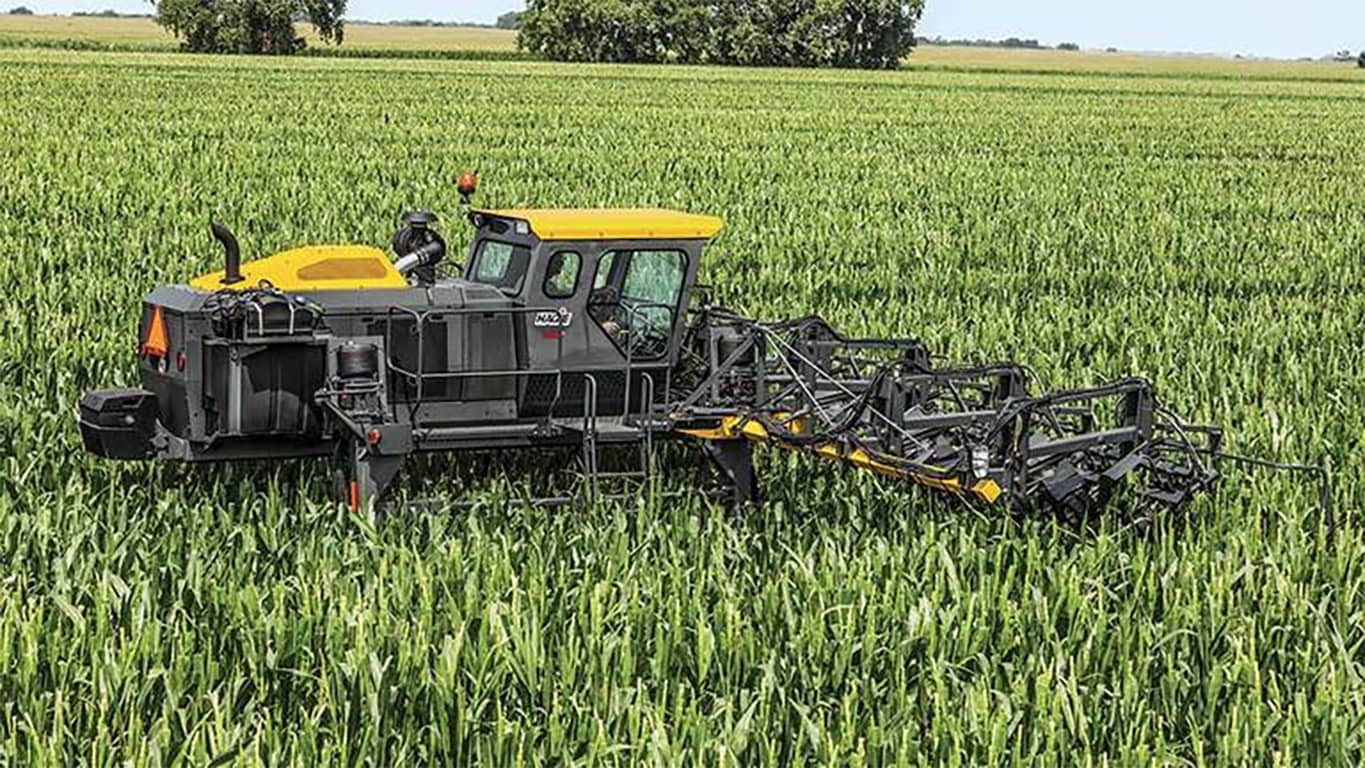

Self-Propelled Detasseler¹

  • Increased visibility and operator comfort with new John Deere cab
  • 173 hp John Deere 4.5L Tier 4 engine
  • Lightweight 15,357 lbs* (6,965.8 kg) design
  • Pull tassels in multiple seed corn heights with a 77-in. (195.6-cm) crop clearance.

Build Your Own

Features

195.6 cm (77 in.) of underframe clearance 195.6 cm (77 in.) of underframe clearance

Perform detasseling in tall varieties of seed corn with 195.6 cm (77in.) of underframe clearance on the Hagie™ 204SP Detasseler.



  • High underframe clearance allows you to operate in taller crop without damaging the plant tissue.



Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

167.6-cm (66-in.) lift arm on Hagie™ 204SP Detasseler 167.6-cm (66-in.) lift arm on Hagie™ 204SP Detasseler

Experience a wide range of detasseling heights with a 167.6-cm (66-in.) lift arm range. The lift arm feature provides adjustments with the upper and lower position for detasseling capability that ranges from 0.63 m up to 2.5 m (2 ft up to 8.4 ft) above ground.

(B) Lift arm range of 167.6 cm (66 in.) (B) Lift arm range of 167.6 cm (66 in.)

Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

6965.8-kg (15,357-lb) weight based on 12-row-6 lift machine with cutters 6965.8-kg (15,357-lb) weight based on 12-row-6 lift machine with cutters

Timing is critical when it comes to detasseling. The 6965.8-kg (15,357-lb) Hagie™ 204SP Detasseler features a lightweight design, allowing you to enter the field any day to perform your detasseling needs.



Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

Air-ride suspension and air bag linkage Air-ride suspension and air bag linkage
Electric air compressor for active air Electric air compressor for active air

The Hagie™ 204SP Detasseler features active air suspension.



Maximize operator comfort and improve operational functions of the detasseler attachments with the active air suspension on the Hagie 204SP Detasseler. In the field or on the road, active air suspension makes for a remarkably smooth ride.



An electric air compressor and air bag linkage enhances the air-ride suspension by making sure there is always the right amount of air in the suspension bags, from roading to operating in different field conditions.



Hagie is a trademark of Hagie Manufacturing Company, LLC and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

QuickTach system allows easy changeover from cutter to quad puller attachments with simply pulling two locking pins QuickTach system allows easy changeover from cutter to quad puller attachments with simply pulling two locking pins
QuickTach system allows easy changeover from cutter to quad puller attachments with simply pulling two locking pins QuickTach system allows easy changeover from cutter to quad puller attachments with simply pulling two locking pins

No tools are needed to quickly change from cutting to pulling attachments with just two locking pins on each head.

  • Increase productivity by easily converting from cutting to pulling attachments
  • No tools required to change from cutters to pullers
  • Hydraulic quick connect couplers on the head attachments also increase the ease of changeover from cutters to pullers.
Cutter attachment                                                                 Cutter attachment
Puller attachment Puller attachment

G5 Universal Display and AutoTrac Universal 300 in a Hagie 204SP cab G5 Universal Display and AutoTrac Universal 300 in a Hagie 204SP cab
RowSense feeler on a Hagie 204SP RowSense feeler on a Hagie 204SP

John Deere AutoTrac RowSense gives the Hagie 204SP detasseler the ability to steer itself. The result? Reduce operator fatigue and the ability to relax and focus more on the quality of detasseling job the machine is doing. With the G5 Universal Display, StarFire™ 7500 antenna, AutoTrac Universal 300, and RowSense feelers, the Hagie 204SP Detasseler is ready to AutoTrac through the field in the long hours of detasseling season.

Benefits
  • Less strain on the operator
  • Hands free operation
  • Less crop damage
  • Reduce fatigue

Detasseler cab
Detasseler cab exterior Detasseler cab exterior
Detasseler cab interior Detasseler cab interior

The Hagie detasseler comes with a cab that offers a comfortable and quiet working environment with plenty of visibility, space, and features. For those long hours required during the detasseling season, the John Deere cab new to the Hagie 204SP provides improved operator comfort to reduce fatigue in the field. The cab features a Hagie designed side console that still provides simple detasseling controls.



Cab features

  • Rear window tint
  • Improved visibility
  • Operator’s seat with air suspension
  • Folding instructor seat
  • AM/FM radio with Bluetooth® wireless functionality
  • Tilt steering column
  • Two 12-V power outlets
  • Sun visor
  • Halogen lights
  • Hagie side console
Hagie 204SP operator station Hagie 204SP operator station

Operators can easily adjust features and controls in the 204SP Detasseler operator’s station to maximize comfort and keep the machine performing throughout the field.



Bluetooth is a trademark of Bluetooth SIG, Inc.

Montag cover crop system Montag cover crop system
Montag cover crop system Montag cover crop system

Boost the versatility of the Hagie 204SP Detasseler and optimize soil health with a cover crop seeding solution. The Montag 2108 Cover Crop System is an engineered solution specifically designed to be compatible with model year 2015 to 2024 Hagie 204SP Detasselers.



  • Increases uptime and asset utilization, to reduce the cost of operation via single pass to apply nutrients and/or cover crop seed at the same time as male row destroying or as stand-alone seeding option
  • Improve soil health, reduced soil erosion, and water quality improvements from the use of cover crop practices



Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

Montag single bin cover crop system Montag single bin cover crop system

The Montag cover crop system features the Gen 2 2108 single bin design totaling 1-m3 (35-cu ft) capacity, sized to fit the operation. The system is controlled with Montag MTC200 controller for a simple, user-friendly operator interface.

  • Available as stand-alone seeding option
  • Configurable with up to eight primary meters - flexible base able to meet multiple application requirements for 12 (9.1 m [30 ft]) to 15 (11.43 m [37.5ft]) rows
Montag chart Montag chart
Montag chart Montag chart

When performing seeding applications at 16.1 km/h (10 mph), producers can apply 2.3 kg (5 lb) to 40.8 kg (90 lb) of seed per acre to meet individual productivity needs (see the rate charts above for more details). The Montag 2108 Cover Crop System provides a unique solution to protect and nurture soil health while enhancing versatility, making the Hagie 204SP Detasseler a one-machine solution for late season needs.



Key specifications
Row configurable 12 (9.1 m [30 ft]) to 15 (11.43 m [37.5ft])
Section sonfigurable 1-4 sections
Slide gate control Manual lever
Controller Montag MTC200 controller
Product capacity (bin) 0.85 m3 (30-cu ft) bin: 0.99 m3 (34.8-cu ft), 1.11 ton* (2447.13 lb)
Rate capacity (bin) See 2108 rate chart at www.montagmfg.com
2108 weight** 385.55 kg (850 lb) to 453.6 kg (1,000 lb)
Fill height 3.6 m (12 ft)
Product fill inlet size 0.97 m (3.2 ft)
Product outlet hose size 5.08 cm (2 in.)
Required hydraulic capacity 52.99 L/min (14 gpm)
Required hydraulic pressure 137.89 bar (2000 psi)

*Calculated using 1.025 kg/L (64 lb/cu ft) product density

**Unloaded, dry weight (approximated). Excludes platform and mounting kit



NOTE: Montag Manufacturing has an allied partnership agreement with John Deere as it relates to the cover crop system and is responsible for providing sales and technical support to dealers.



For additional information about the system, visit www.montagmfg.com or call 712-852-4572. Montag is a trademark of Montag Manufacturing, Inc.

Specifications

EnginePeak rated power
129 kW
173 hp
Detasseling speed rangeLow range: 0 to 16.1 km/h
0 to 10 mph
High range: 0 to 20.9 km/h
0 to 13 mph
Transport speed, maximum20.9 km/h
13 mph
SuspensionIndependent air-ride
Crop clearance with standard tires195.6 cm
77 in.

Peak rated power129 kW
173 hp
EmissionsFinal Tier 4 (FT4)/Stage V
Number of cylindersFour
Displacement4.5 L
275 cu in.
Alternator120 amp
Fuel tank capacity340.7 L
90 gal.
Diesel exhaust fluid (DEF) tank capacity21.6 L
5.7 gal.

Glass5.45 m2
58.7 sq ft
SeatAir suspension
Instructional seatStandarded
Windshield wiperSingle blade

Toolbar outriggers12-row: 340.4 cm
134 in.
Row configurations12
Detasseling control systemTasseltrol
Cutter height rangeLower lift position range: 55.4 to 222.5 cm
21.8 to 87.6 in.
Upper lift position range: 75.1 to 242.2 cm
29.6 to 95.4 in.
Puller height rangeLower lift position range: 46.2 to 213.3 cm
18.2 to 83.9 in.
Upper lift position range: 65.9 to 233 cm
25.9 to 91.7 in.
Quad Puller operating speedFactory setpoint: 450 rpm
Cutter operating speedFactory setpoint: 2800 rpm

Option 1Quad Puller - 12 Row 6 Lift
Row spacing: 76.2 cm
30 in.
Option 2Cutter - 12 Row 6 Lift
Row spacing: 76.2 cm
30 in.

TypeHydrostatic
DriveFull-time four-wheel drive (4WD)
ShiftingDual speed range
Hydraulic reservoir capacity65.3 L
17.25 gal.
Detasseling speed rangeLow range: 0 to 16.1 km/h
0 to 10 mph
High range: 0 to 20.9 km/h
0 to 13 mph
Transport speed, maximum20.9 km/h
13 mph

Dry compatibleNo
SuspensionIndependent air-ride
Crop clearance with standard tires195.6 cm
77 in.
Front tiresTitan® 12.4 x 38
Rear tiresTitan 12.4 x 38
Hydraulic tread adjustManual only
Wheel tread spacing254 to 304.8 cm
100 to 120 in.
Wheelbase307.3 cm
121 in.
Turning radius5.5 m
18 ft
Parking brakeIntegrated in final drives
Primary brakesDrive system dynamic braking
Ladder raise/lowerFixed ladder
Approximate dry weightBased off of a 12 row 6 lift machine with cutters: 6965.8 kg
15,357 lb

Images of equipment models may be digitally generated, are for illustration purposes only, and are subject to change. Equipment models shown are typically base models and may not reflect all features, options, or attachments. Equipment availability may be limited. See your John Deere dealer for additional information.

1Preproduction model shown. Specifications and design subject to change.

*Based off of a 12-row 6-lift machine with cutters.
